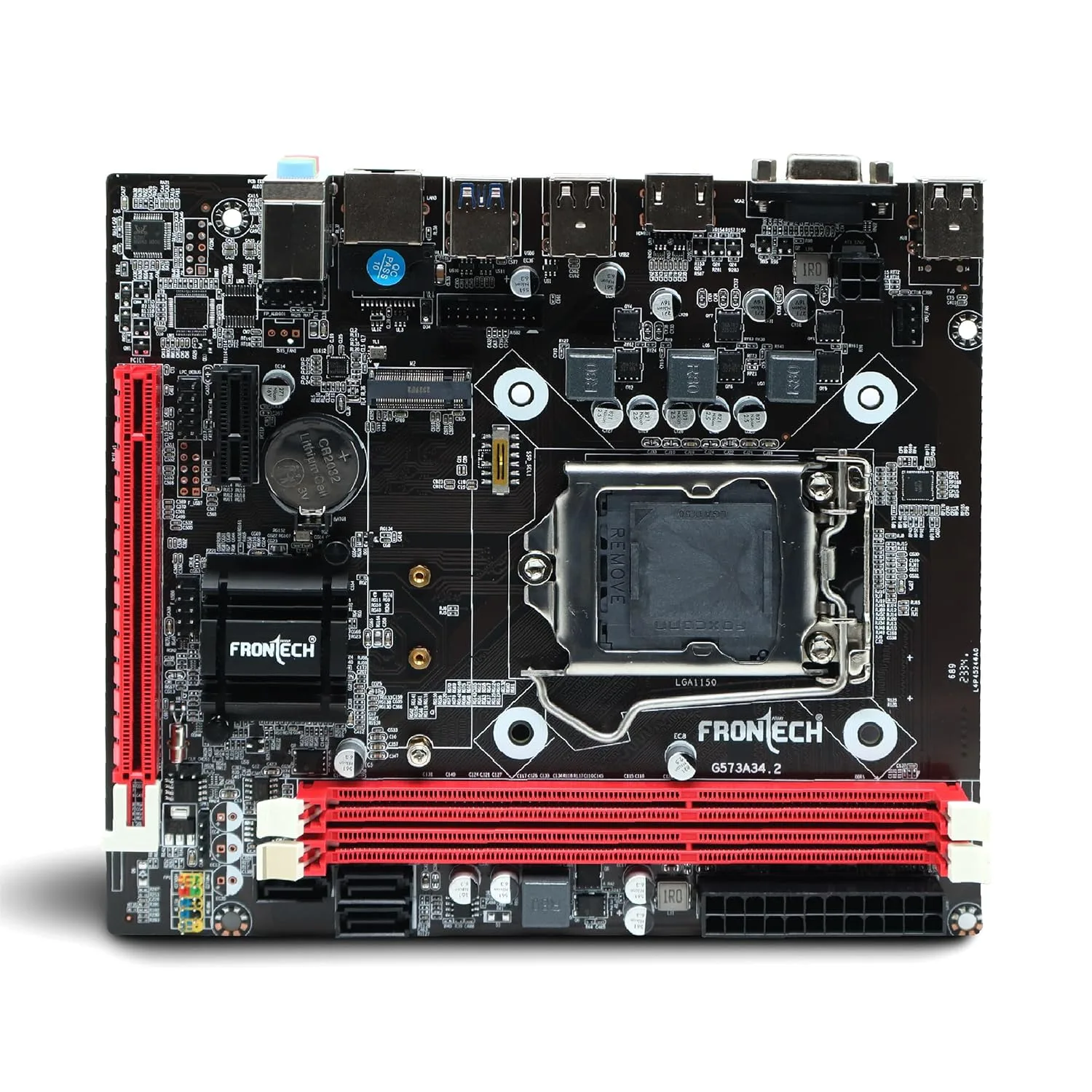

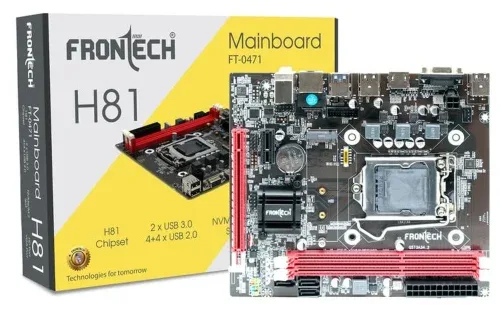

Frontech FT-0471 H81

The Frontech FT-0471 H81 is a budget-oriented motherboard designed for Intel LGA1150 desktop processors. It is based on the Intel H81 Express chipset and supports compatible 4th Generation Intel Haswell processors, including Intel Core processors along with compatible Pentium and Celeron processors. The motherboard provides two DDR3 DIMM slots supporting up to 16GB of DDR3 memory in dual-channel configuration. Supported memory speeds include 1066MHz, 1333MHz and 1600MHz. For storage, the FT-0471 provides four SATA ports and an NVMe M.2 slot, allowing users to install both traditional SATA storage and compatible NVMe SSDs. For graphics and expansion, the board includes a PCI Express x16 slot for a dedicated graphics card and a PCI Express x1 slot for additional expansion hardware. Display connectivity includes HDMI and VGA outputs. Networking is provided through onboard Ethernet, while Realtek HD Audio provides integrated sound functionality. The rear I/O includes USB 3.0 and USB 2.0 connectivity. With its compact form factor and economical feature set, the FT-0471 is suitable for office computers, billing systems, home PCs, educational systems and general-purpose budget desktop builds.
