GIGABYTE B840M GAMING X WIFI6E Motherboard

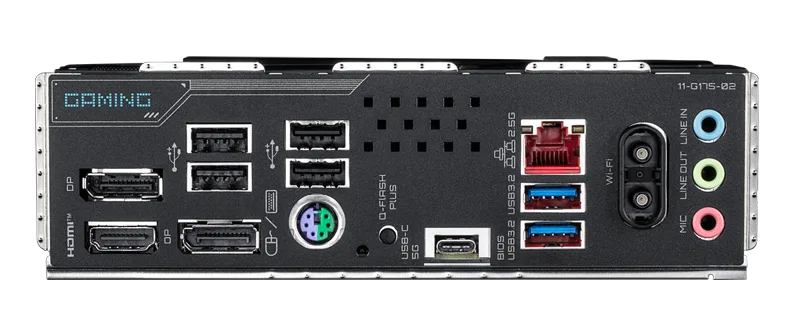

The GIGABYTE B840M GAMING X WIFI6E is a performance-focused Micro-ATX gaming motherboard designed for AMD Socket AM5 processors. It supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors and is built around the AMD B840 chipset. The motherboard features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. It supports high-speed DDR5 memory up to 8200 MT/s through overclocking, along with AMD EXPO and XMP memory profiles. For graphics and expansion, the B840M GAMING X WIFI6E provides a full-length PCIe 4.0 x16 slot and an additional PCIe 3.0 x1 slot. Storage connectivity includes two PCIe 4.0 M.2 slots and four SATA 6Gb/s connectors, providing flexible options for high-speed NVMe SSDs and conventional SATA storage. Networking is a major feature of this model, with a Realtek 2.5GbE LAN controller and integrated MediaTek Wi-Fi 6E supporting the 2.4GHz, 5GHz and 6GHz bands. Bluetooth 5.3 is also included for wireless peripherals and accessories. For display output, the motherboard provides HDMI 2.1 and two DisplayPort 1.4 outputs, with support for up to three displays depending on the processor. It also features Realtek High Definition Audio, Smart Fan 6, Q-Flash Plus and GIGABYTE Control Center. With its 8+2+2 Digital VRM design, six-layer PCB, dual M.2 slots, DDR5 support, Wi-Fi 6E and 2.5GbE networking, the B840M GAMING X WIFI6E is a strong choice for gaming PCs and compact high-performance systems.
