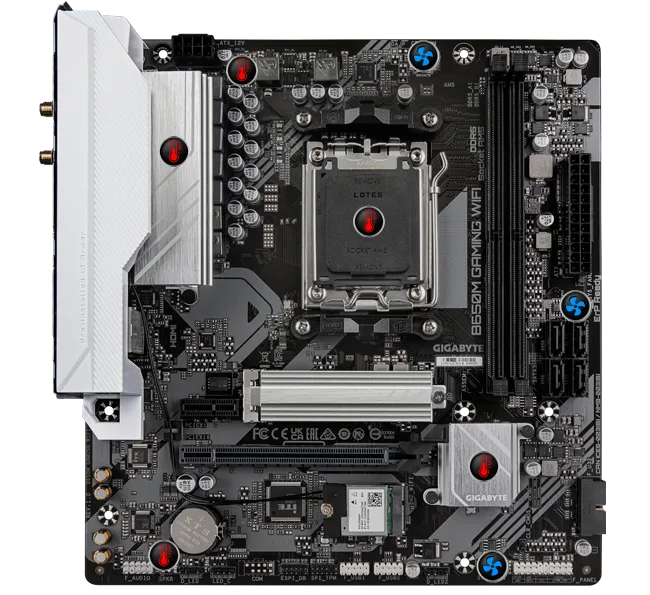

GIGABYTE B650M GAMING WIFI Motherboard

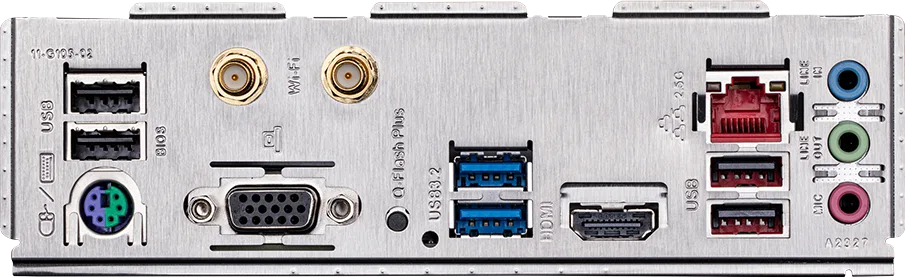

The GIGABYTE B650M GAMING WIFI is a compact Micro-ATX gaming motherboard designed for AMD Ryzen processors using the AM5 platform. It is built around the AMD B650 chipset and supports AMD Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors. The motherboard features two DDR5 DIMM slots supporting up to 128GB of system memory in dual-channel configuration. It supports AMD EXPO and Intel XMP memory profiles, allowing users to take advantage of compatible high-performance DDR5 memory. For graphics and expansion, the B650M GAMING WIFI provides a PCIe 4.0 x16 slot and an additional PCIe 3.0 x1 slot. Storage includes a PCIe 4.0 x4 M.2 connector for high-speed NVMe SSDs, along with four SATA 6Gb/s ports. Networking includes a Realtek 2.5GbE LAN controller and an integrated dual-band 802.11ac Wi-Fi module. The wireless module also provides Bluetooth connectivity. The motherboard includes HDMI and D-Sub display outputs, Realtek High Definition Audio and GIGABYTE Smart Fan 6 for system cooling management. With its 5+2+2 Digital VRM design, DDR5 support, PCIe 4.0 graphics interface, NVMe storage support, 2.5GbE LAN and built-in Wi-Fi, the B650M GAMING WIFI is a suitable choice for gaming PCs, home systems and compact performance builds.
