Frontech FT-0482 H310

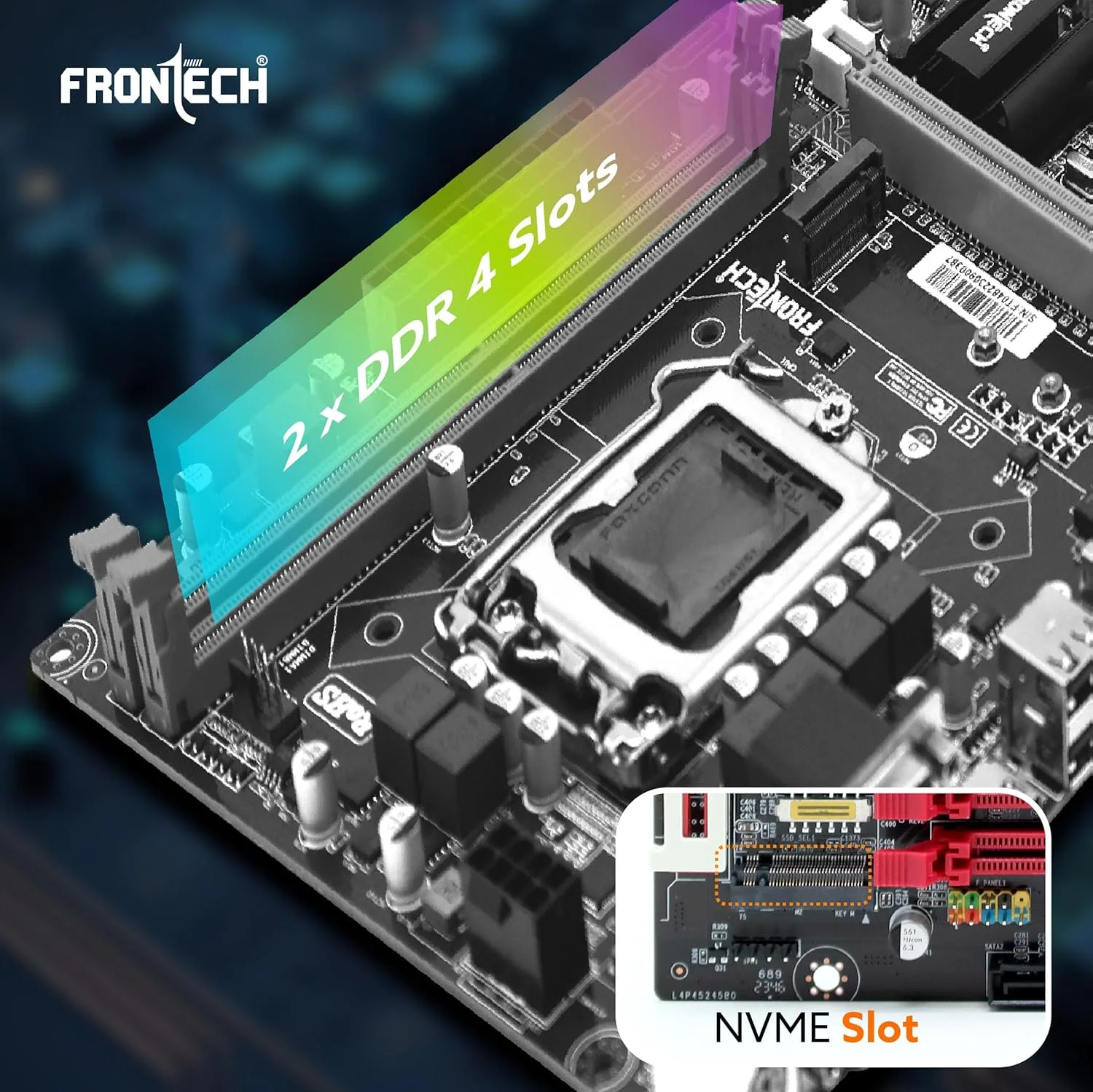

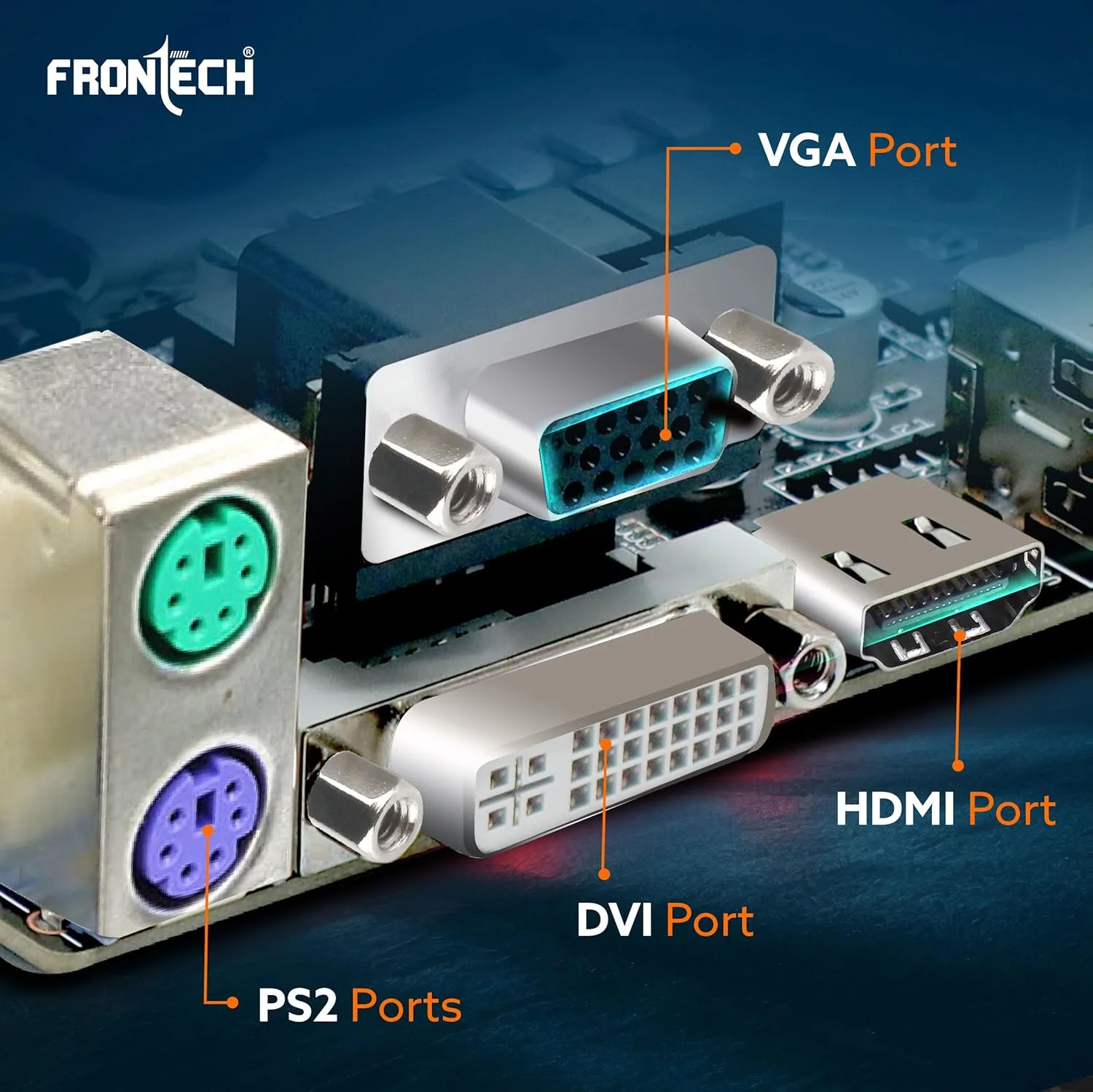

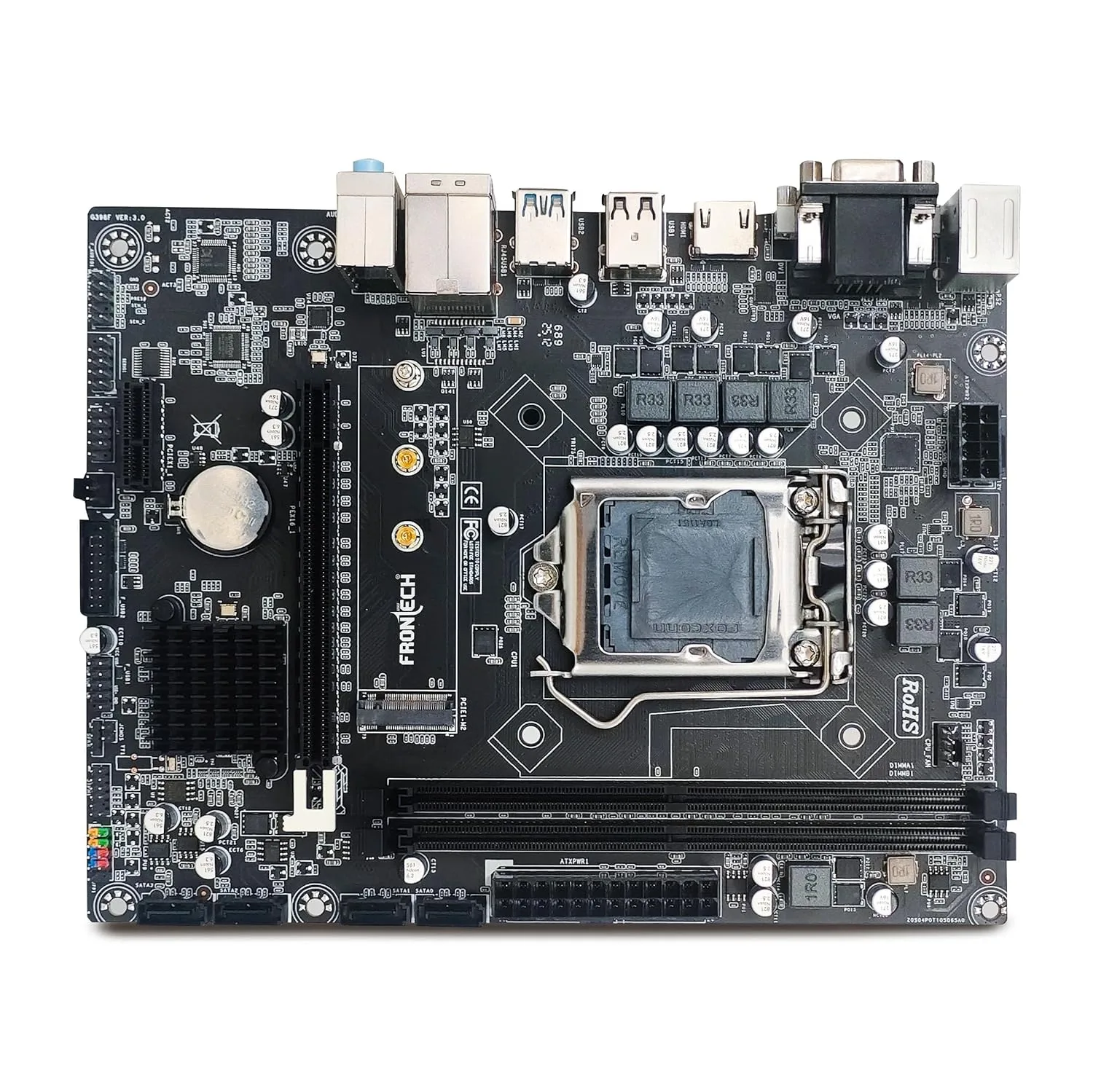

The Frontech FT-0482 H310 is a budget-friendly Micro-ATX motherboard designed for Intel LGA1151 desktop processors. It is based on the Intel H310 Express chipset and supports compatible Intel 8th and 9th Generation Core i3, i5 and i7 processors, as well as Pentium and Celeron processors. The motherboard supports DDR4 memory through two DIMM slots, with support for up to 32GB of system memory. Supported DDR4 speeds include 2666, 2400 and 2133 MHz. For graphics and expansion, the FT-0482 provides one PCI Express x16 slot and one PCI Express x1 slot. Storage connectivity includes four SATA 6Gb/s ports and an NVMe M.2 connector, allowing users to install both high-speed NVMe SSDs and SATA storage devices. Display connectivity includes HDMI, DVI and VGA outputs. Networking is provided by a Realtek Gigabit LAN controller, while audio is handled by a Realtek ALC662 audio codec. The motherboard also provides USB 3.0 and USB 2.0 connectivity and uses a compact Micro-ATX design. It is suitable for office computers, home PCs, billing systems, general-purpose desktops and budget PC builds. Frontech's current warranty policy lists 3 years Carry-In warranty for the H310 FT-0482/0483 series.
