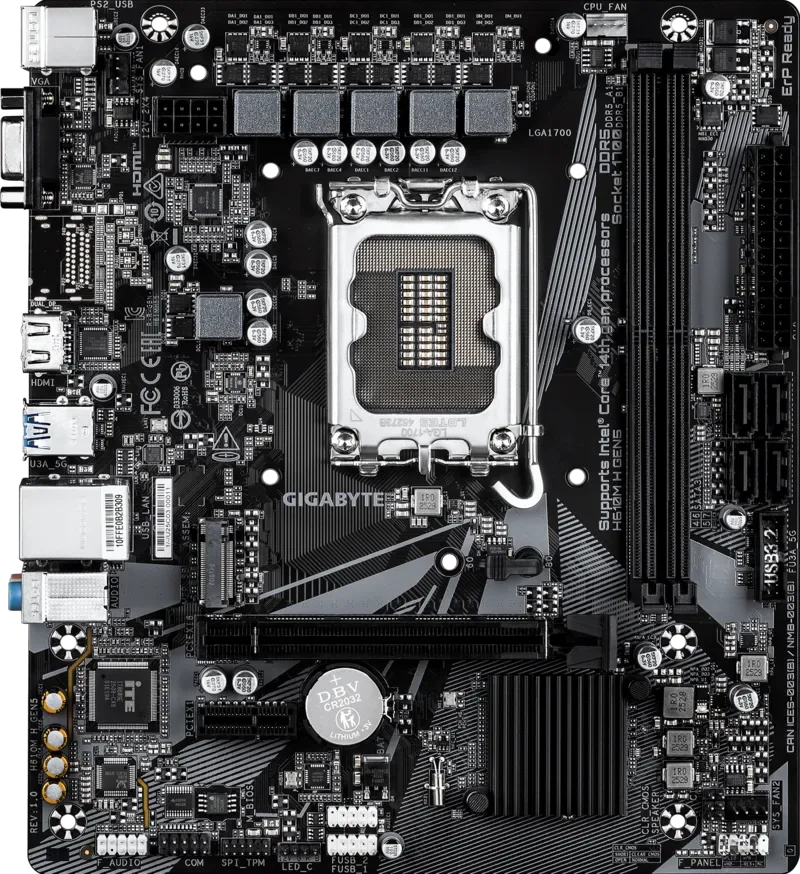

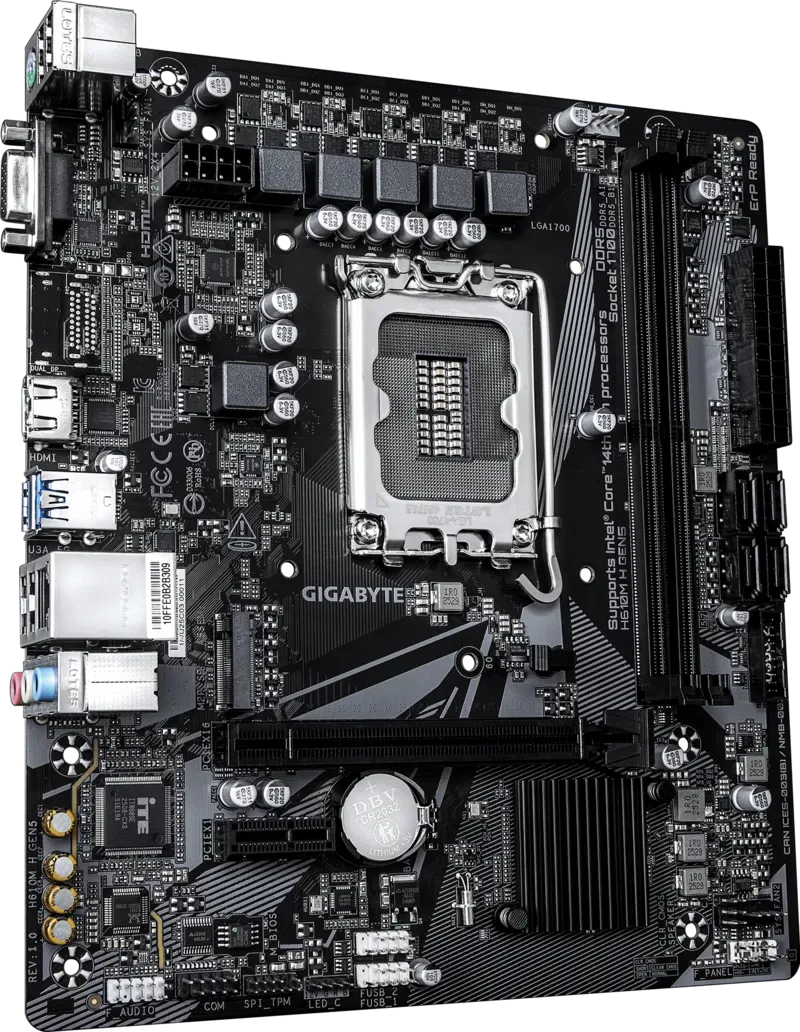

GIGABYTE H610M H GEN5 MotherBoard

The GIGABYTE H610M H GEN5 is a compact Micro-ATX motherboard designed for Intel LGA1700 desktop processors. It is based on the Intel H610 Express chipset and supports Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron processors. The motherboard features two DDR5 DIMM slots supporting up to 128GB of system memory in dual-channel configuration. Supported memory speeds depend on the installed processor, with DDR5 5600/5200/4800/4400 MT/s supported on compatible 14th and 13th Gen processors, while supported 12th Gen processors operate at lower officially supported speeds. Intel XMP memory modules are supported. One of the key upgrades in the GEN5 model is its PCIe 5.0 x16 graphics slot, providing increased bandwidth for compatible next-generation graphics cards. Storage is provided through an M.2 PCIe 3.0 x4/x2 slot for NVMe SSDs, together with SATA storage connectivity. Networking is provided by Gigabit Ethernet LAN. The standard H610M H GEN5 does not include integrated Wi-Fi or Bluetooth. The board uses a 4+1+1 Hybrid Digital VRM design and includes Smart Fan 6 for temperature monitoring and fan control. GIGABYTE also provides high-quality audio capacitors, Audio Noise Guard, Anti-Sulfur Resistor technology and GIGABYTE APP Center.
