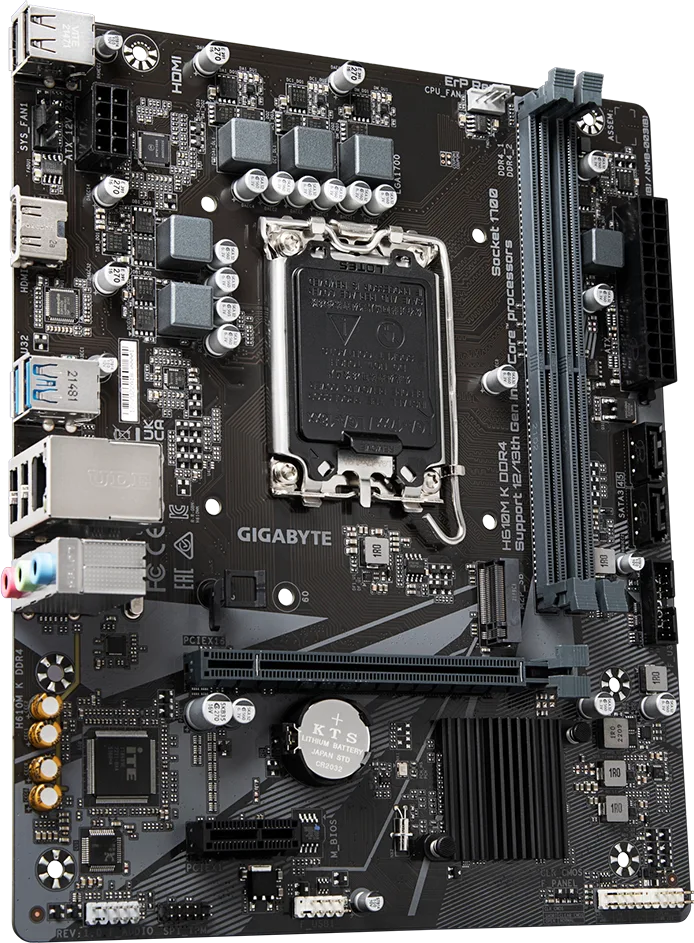

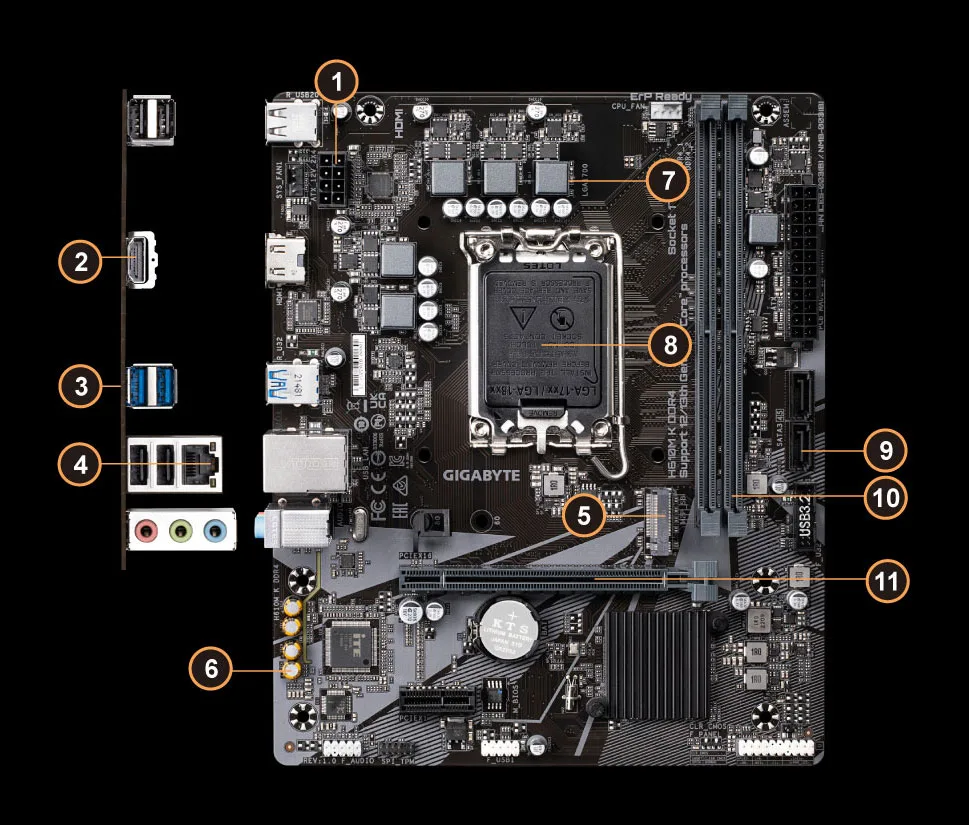

GIGABYTE H610M K DDR4 Motherboard

The GIGABYTE H610M K DDR4 is a practical Micro-ATX motherboard designed for Intel LGA1700 desktop processors. Based on the Intel H610 Express chipset, it supports Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron processors. The motherboard features two DDR4 DIMM slots supporting up to 64GB of system memory in dual-channel configuration. It supports DDR4 memory speeds up to 3200 MT/s, along with Intel XMP memory profiles. For graphics and expansion, the H610M K DDR4 provides one PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for additional expansion cards. Storage connectivity includes one M.2 PCIe 3.0 x4/x2 slot for NVMe SSDs and two SATA 6Gb/s connectors. Networking is provided by a Realtek Gigabit LAN controller with bandwidth management. The standard H610M K DDR4 does not include integrated Wi-Fi or Bluetooth. Display connectivity is provided through HDMI, supporting up to 4096 × 2160 at 60Hz when supported by the installed processor. Audio is handled by a Realtek High Definition Audio codec with support for multi-channel audio. The board also includes GIGABYTE features such as Smart Fan 6, Q-Flash, Audio Noise Guard, high-quality audio capacitors and Anti-Sulfur Resistor design, making it suitable for office PCs, billing systems, home computers and general-purpose desktop builds.
