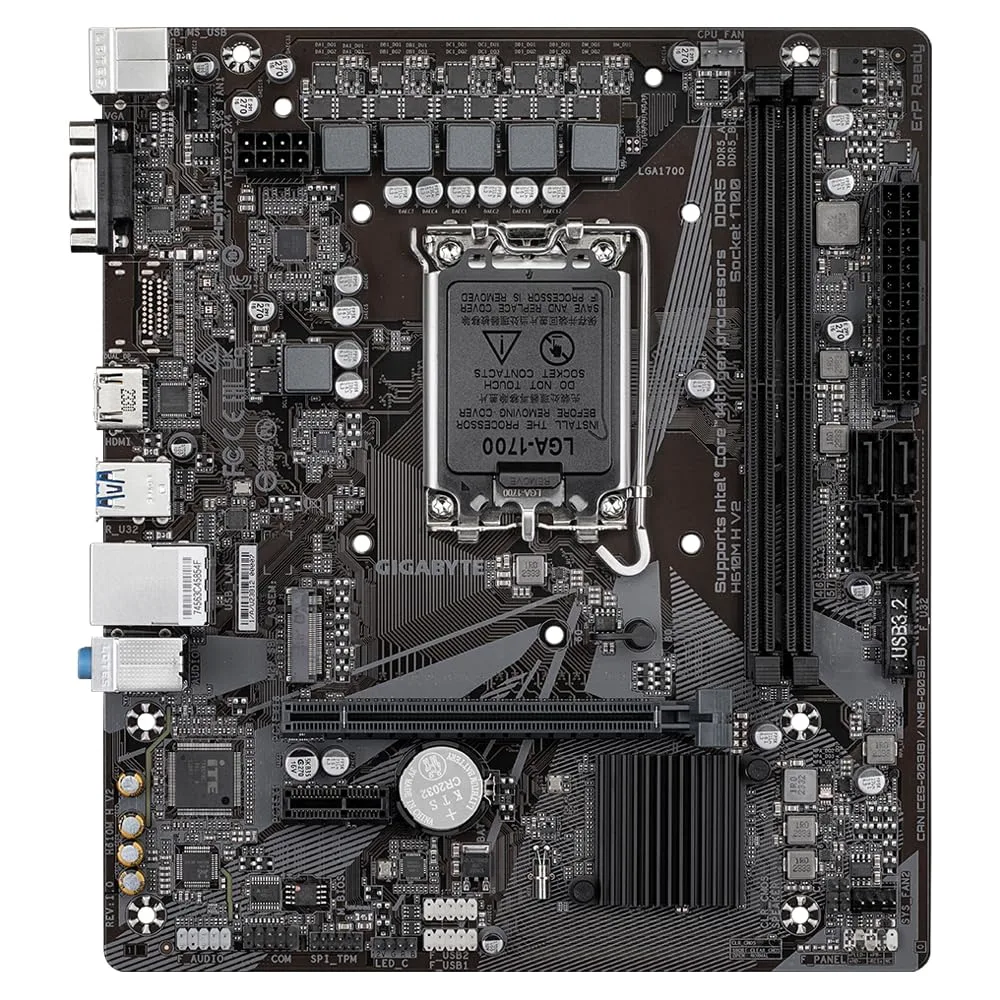

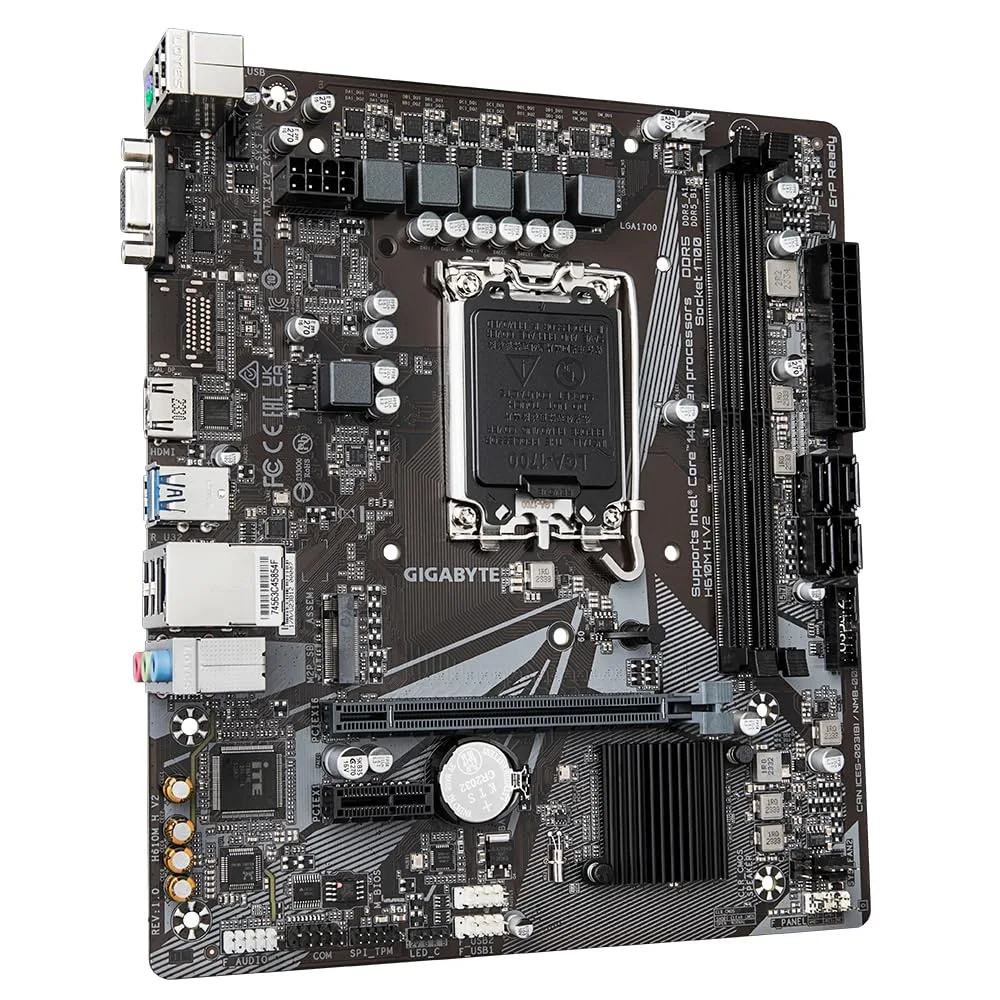

GIGABYTE H610M H V2 Motherboard

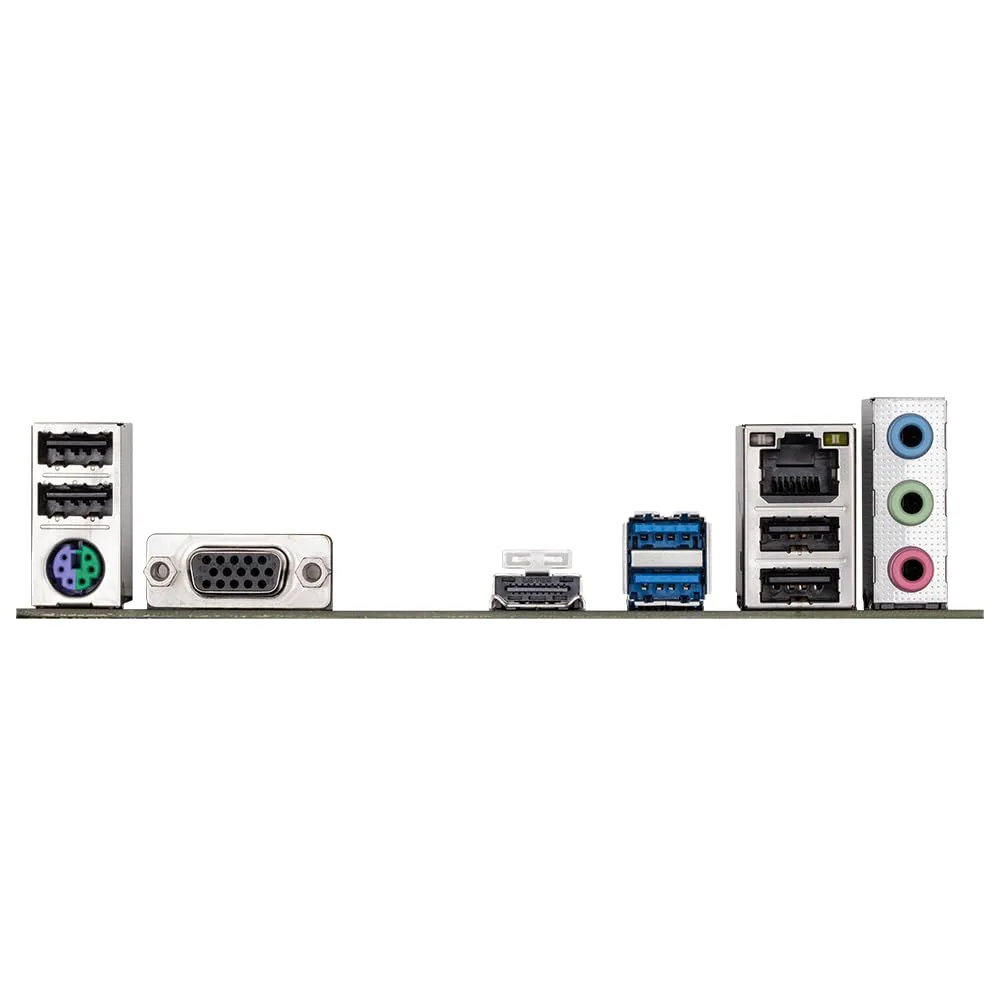

The GIGABYTE H610M H V2 is a compact Micro-ATX motherboard designed for Intel LGA1700 desktop processors. Based on the Intel H610 Express chipset, it supports Intel Core 14th, 13th and 12th Generation processors, as well as compatible Pentium Gold and Celeron processors. The motherboard provides two DDR5 DIMM slots with support for up to 128GB of system memory in dual-channel configuration. It supports DDR5 memory speeds depending on the installed processor, with support for DDR5-5600/5200/4800/4400 MT/s on supported CPUs, as well as Intel XMP memory profiles. For graphics and expansion, the H610M H V2 features one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot. Storage includes one M.2 PCIe 3.0 x4/x2 connector for NVMe SSDs and four SATA 6Gb/s connectors. Networking is provided by a Realtek Gigabit LAN controller with bandwidth management. The standard H610M H V2 does not include integrated Wi-Fi or Bluetooth. Display connectivity includes HDMI 2.1 and D-Sub outputs, with integrated graphics functionality dependent on the installed Intel processor. Audio is provided through a Realtek High Definition Audio codec supporting up to 7.1-channel audio. The board uses a 4+1+1 Hybrid Digital VRM design, PCIe 4.0-ready PCB, Smart Fan 6, high-quality audio capacitors, Audio Noise Guard and Anti-Sulfur Resistor technology. These features make it suitable for office computers, home PCs, billing systems and general-purpose desktop builds.
