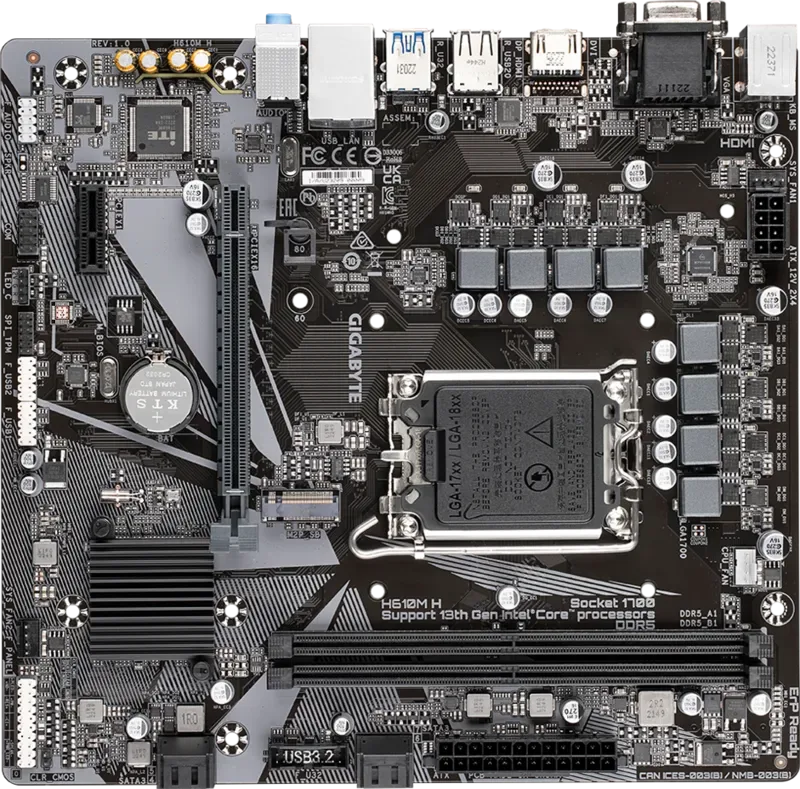

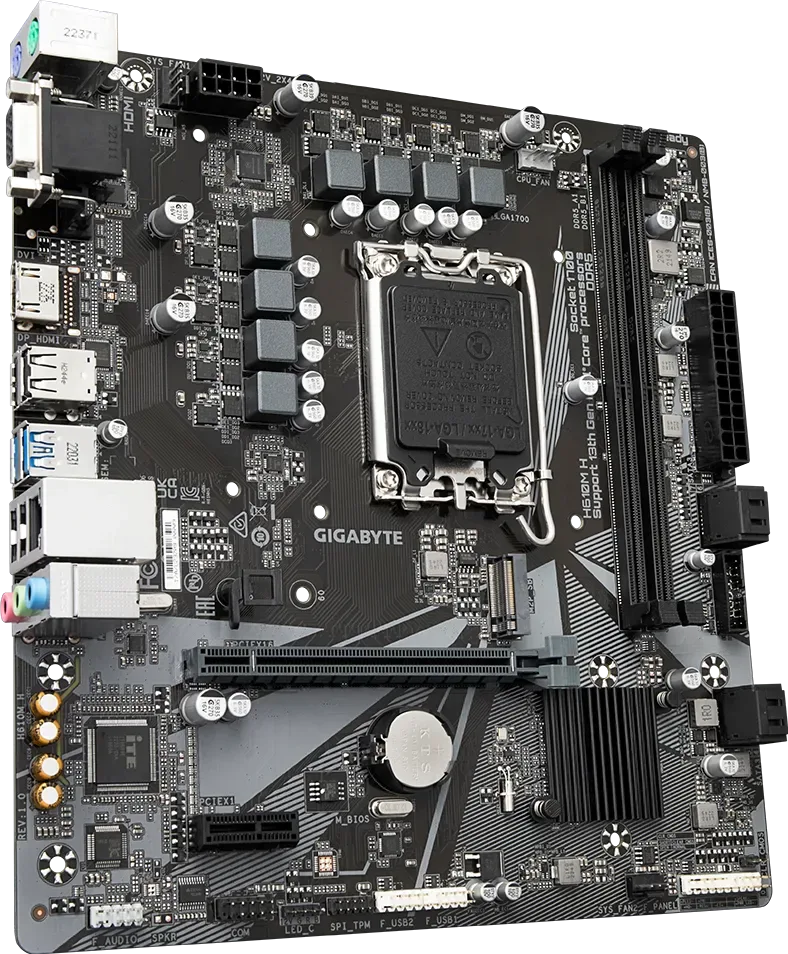

GIGABYTE H610M H Motherboard

The GIGABYTE H610M H is a compact Micro-ATX motherboard designed for Intel LGA1700 desktop processors. It uses the Intel H610 Express chipset and supports Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron processors. The motherboard features two DDR5 DIMM slots supporting up to 128GB of system memory in dual-channel configuration. Depending on the processor, supported DDR5 memory speeds include up to DDR5-5600 MT/s. Intel XMP memory modules are also supported. For graphics and expansion, the H610M H provides one PCI Express x16 slot supporting PCIe 4.0 x16 and one PCIe 3.0 x1 expansion slot. Storage includes one M.2 connector supporting PCIe 3.0 x4/x2 NVMe SSDs, together with four SATA 6Gb/s connectors. For networking, the motherboard includes a Realtek Gigabit Ethernet LAN controller. It does not include integrated Wi-Fi or Bluetooth. Display connectivity includes D-Sub and HDMI, with graphics capability depending on the installed processor. The H610M H also features a 6+1+1 Hybrid Digital VRM design, Smart Fan 6, high-quality audio capacitors, Audio Noise Guard and GIGABYTE's Anti-Sulfur Resistor design. These features make it suitable for office computers, home systems, entry-level desktops and general-purpose PC builds.
