GIGABYTE B760M GAMING X AX Motherboard

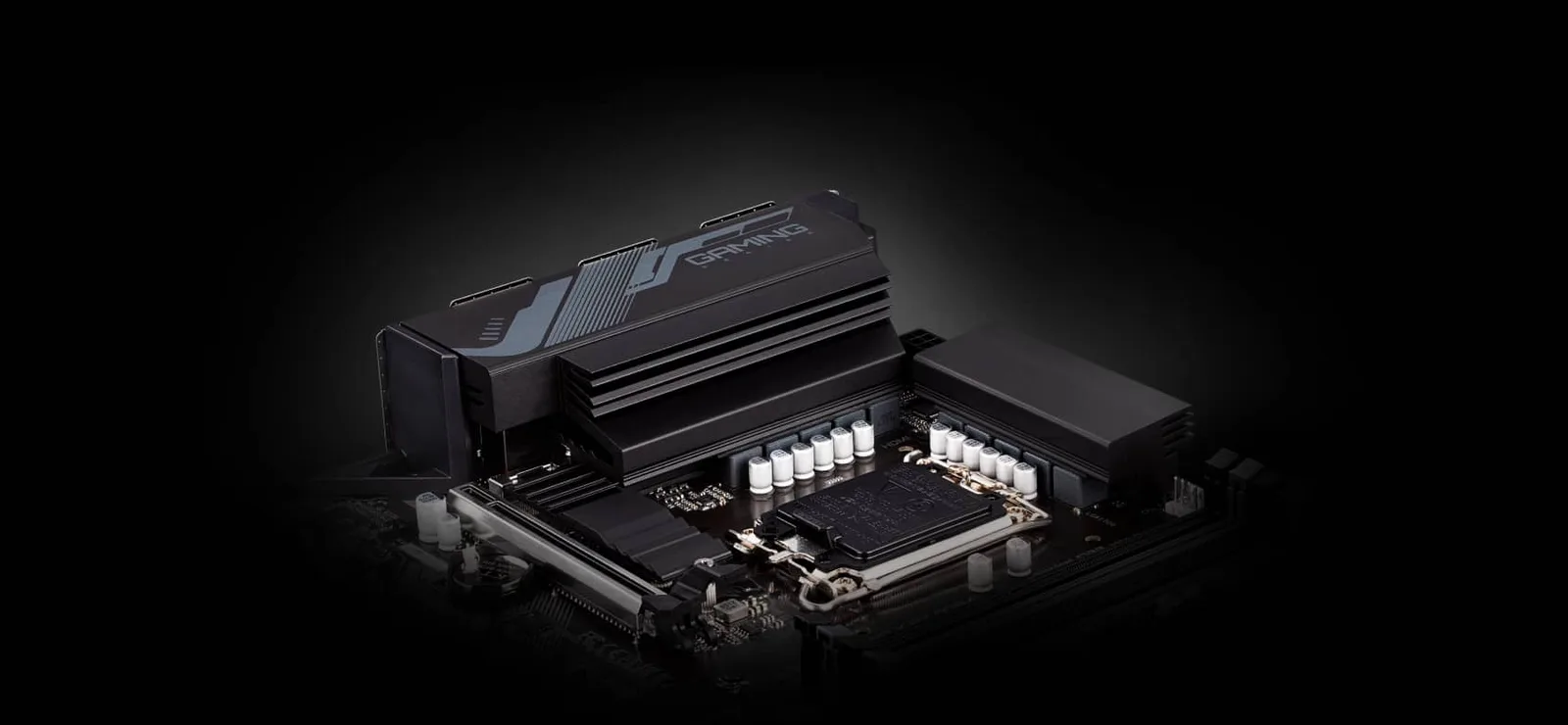

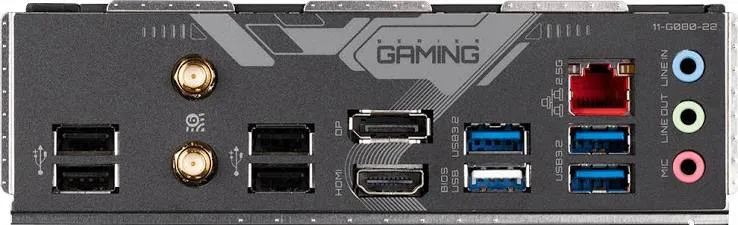

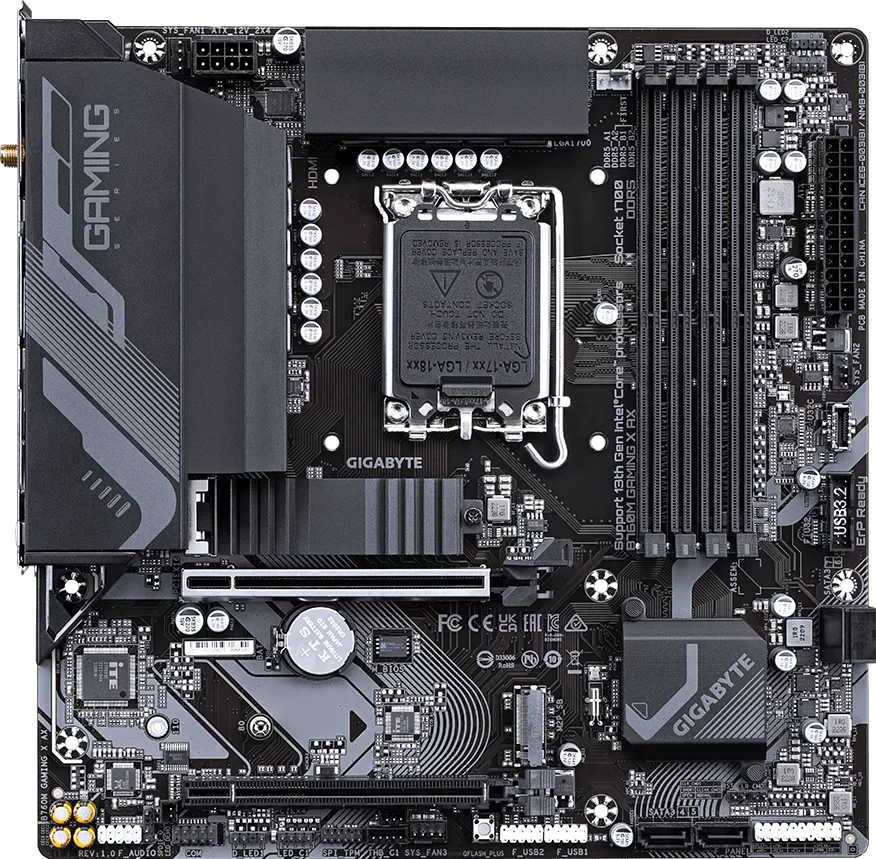

The GIGABYTE B760M GAMING X AX is a compact Micro-ATX gaming motherboard designed for Intel LGA1700 desktop processors. It is based on the Intel B760 chipset and supports Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron processors. The motherboard features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. It supports high-speed DDR5 memory up to 7600 MT/s through overclocking and Intel XMP memory profiles. For graphics and expansion, the B760M GAMING X AX provides a PCIe 4.0 x16 slot for the graphics card and an additional PCIe 3.0 x4 slot. Storage includes two PCIe 4.0 x4/x2 M.2 connectors and four SATA 6Gb/s ports, providing flexible options for NVMe SSDs and SATA storage. Networking is a key feature of this model. It includes a Realtek 2.5GbE LAN controller and an Intel Wi-Fi 6E AX211 wireless module supporting 2.4GHz, 5GHz and 6GHz bands. Bluetooth 5.3 is also included for wireless peripherals and accessories. For display connectivity, the motherboard provides DisplayPort and HDMI outputs. It also features Realtek High Definition Audio with S/PDIF output, front USB Type-C connectivity, Smart Fan 6 and Q-Flash Plus. The board uses an 8+1+1 phase Hybrid Digital VRM design, together with GIGABYTE thermal solutions and M.2 Thermal Guard, making it suitable for gaming PCs and compact high-performance desktop builds.
