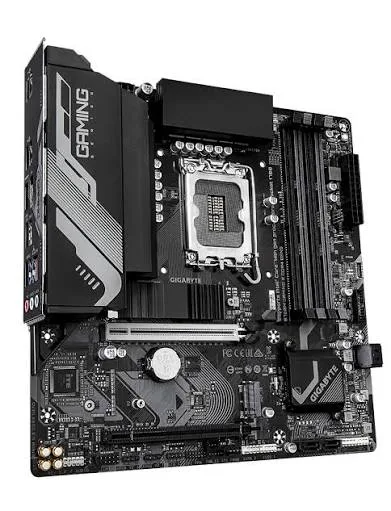

GIGABYTE B760M GAMING X Motherboard

The GIGABYTE B760M GAMING X is a compact Micro-ATX gaming motherboard designed for Intel LGA1700 desktop processors. It is based on the Intel B760 chipset and supports Intel Core 14th, 13th and 12th Generation processors, along with compatible Pentium Gold and Celeron processors. The motherboard features four DDR5 DIMM slots supporting up to 128GB of system memory in dual-channel configuration. It supports high-speed DDR5 memory up to 7600 MT/s through overclocking and Intel XMP memory profiles. For graphics and expansion, the B760M GAMING X provides a PCIe 4.0 x16 slot and an additional PCIe 4.0 x4 slot. Storage connectivity includes two PCIe 4.0 x4 M.2 connectors, with one M.2 connector equipped with a Thermal Guard, plus four SATA 6Gb/s ports. Networking is provided by a Realtek 2.5GbE LAN controller. The standard B760M GAMING X does not include integrated Wi-Fi or Bluetooth. The board uses an 8+1+1 phase Hybrid Digital VRM design with 60A DrMOS, fully covered MOSFET heatsinks and a PCIe 4.0-ready PCB. Additional features include Smart Fan 6, M.2 Thermal Guard, PCIe EZ-Latch, front USB Type-C connectivity and Q-Flash Plus.
