GIGABYTE B550M GAMING X WIFI6 Motherboard

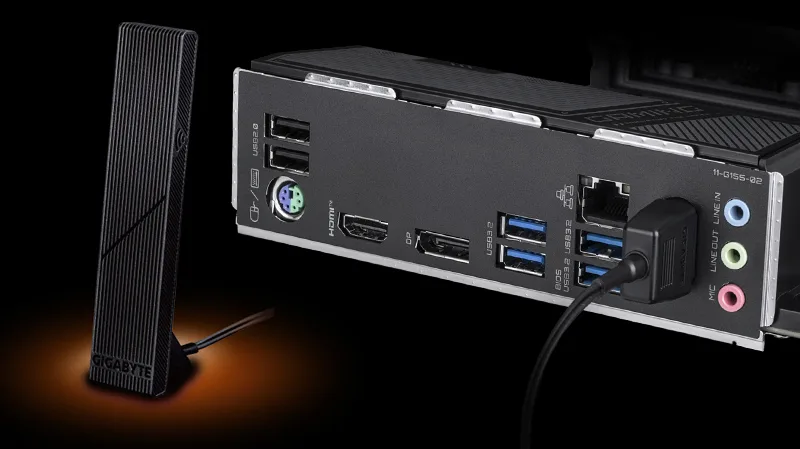

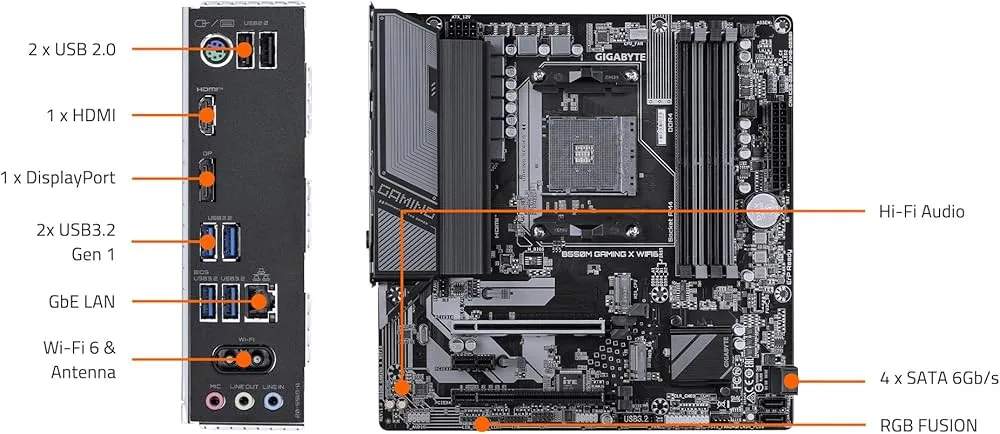

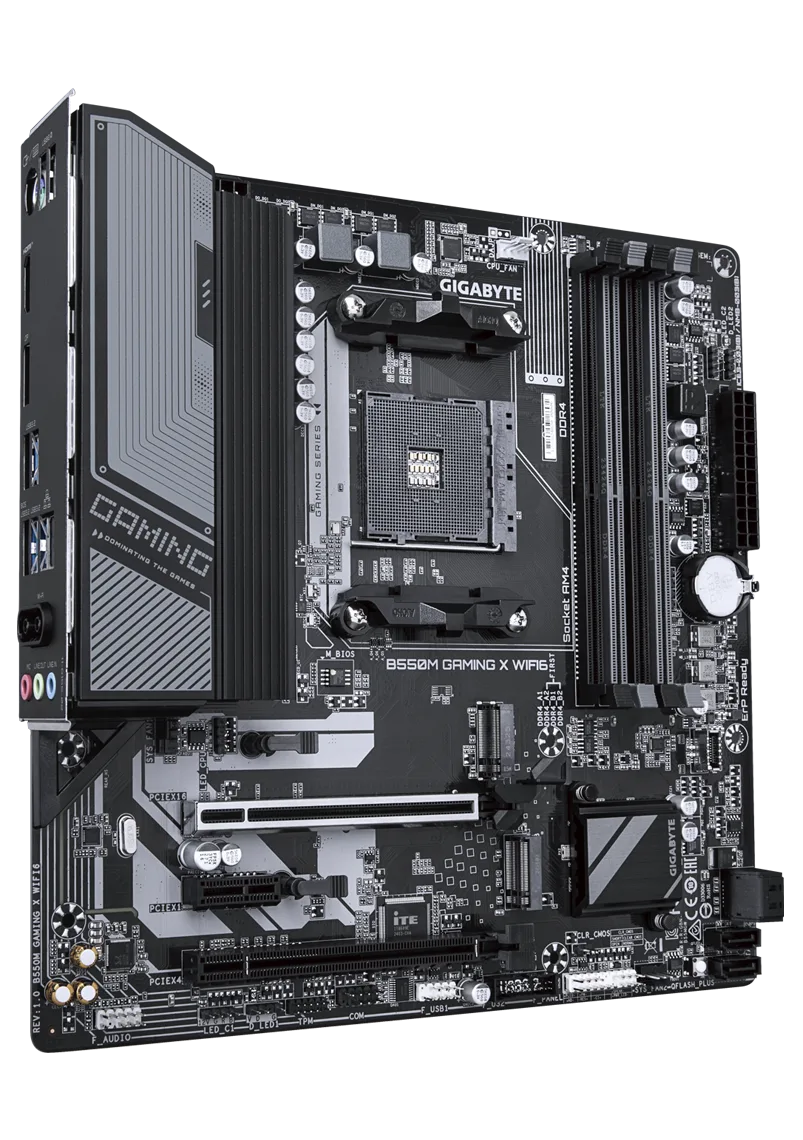

The GIGABYTE B550M GAMING X WIFI6 is a compact Micro-ATX gaming motherboard designed for AMD Ryzen processors using the AM4 platform. It is built around the AMD B550 chipset and supports AMD Ryzen 5000, 4000 G-Series and 3000 Series processors, subject to the applicable CPU support list and BIOS version. The motherboard features four DDR4 DIMM slots supporting up to 128GB of system memory in dual-channel configuration. It supports DDR4 memory speeds up to 3200 MT/s and Intel XMP memory profiles. For graphics and expansion, the B550M GAMING X WIFI6 provides a full-length PCIe x16 slot, with PCIe 4.0 x16 support when paired with compatible Ryzen 5000/3000 Series processors. It also includes additional PCIe expansion slots for peripherals and add-in cards. Storage connectivity includes two M.2 connectors and four SATA 6Gb/s ports. The primary M.2 slot supports PCIe 4.0 x4/x2 with compatible processors, while the second M.2 slot operates through the B550 chipset. NVMe and SATA RAID configurations are also supported. Wireless connectivity is provided by a Realtek Wi-Fi 6 RTL8851BE module supporting 2.4GHz and 5GHz wireless networks, together with Bluetooth 5.3. Wired networking is provided by a Realtek Gigabit LAN controller. For display output, the motherboard includes DisplayPort 1.4 and HDMI 2.1 outputs, with graphics functionality depending on the installed processor. Audio is handled by a Realtek ALC1220 codec with support for multi-channel High Definition Audio. Additional features include Q-Flash Plus, RGB Fusion, Smart Backup, APP Center and system fan monitoring/control, making the B550M GAMING X WIFI6 a suitable choice for gaming PCs and compact AMD-based desktop systems.
