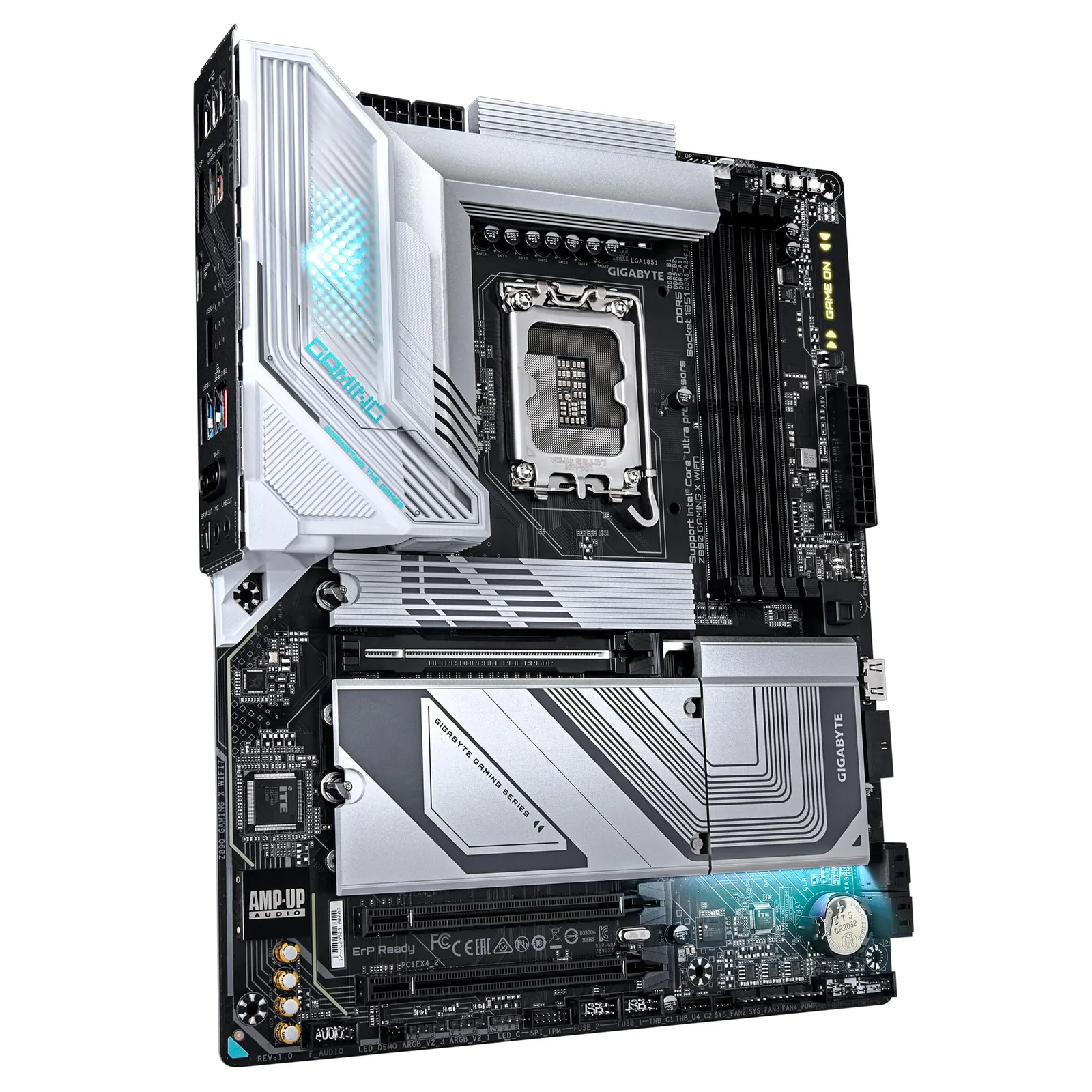

GIGABYTE Z890 GAMING X WIFI7 Motherboard

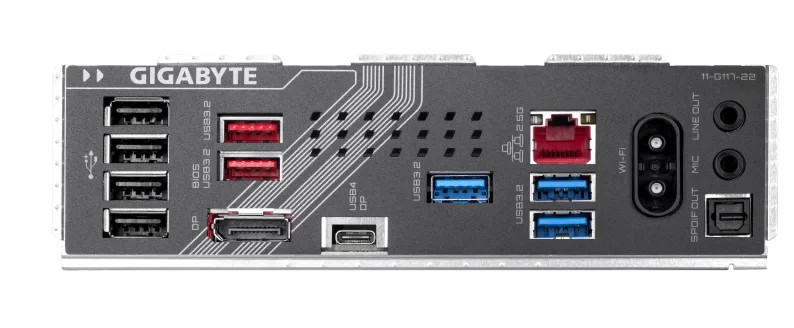

The GIGABYTE Z890 GAMING X WIFI7 is a high-performance ATX gaming motherboard designed for Intel Core Ultra processors using the LGA1851 platform. Built around the Intel Z890 Express chipset, it provides a modern platform for gaming, content creation and high-performance desktop systems. The motherboard features four DDR5 DIMM slots supporting up to 256GB of memory, with support for high-speed DDR5 memory up to 9200 MT/s through overclocking. It also supports Intel XMP and CUDIMM memory modules. For graphics and expansion, the primary PCIe x16 slot supports PCIe 5.0 x16, while two additional PCIe x16 slots operate at PCIe 4.0 x4. Storage connectivity is particularly strong, with four M.2 slots, including one PCIe 5.0 slot and three PCIe 4.0 slots, plus four SATA 6Gb/s ports. Wireless connectivity is provided by Wi-Fi 7, supporting the 2.4GHz, 5GHz and 6GHz bands, along with Bluetooth 5.4. The board also features Realtek 2.5GbE LAN for high-speed wired networking. Connectivity includes a rear USB4 Type-C port with DisplayPort support, USB 3.2 Gen 2 and Gen 1 ports, and multiple USB 2.0 ports. Display connectivity includes DisplayPort 2.1, while the motherboard supports up to three displays depending on the processor. Additional features include Q-Flash Plus, Smart Backup, GIGABYTE Control Center, Smart Fan control, EZ-Latch features and support for Thunderbolt 5 add-in cards, making it a strong choice for modern gaming and enthusiast PC configurations.
