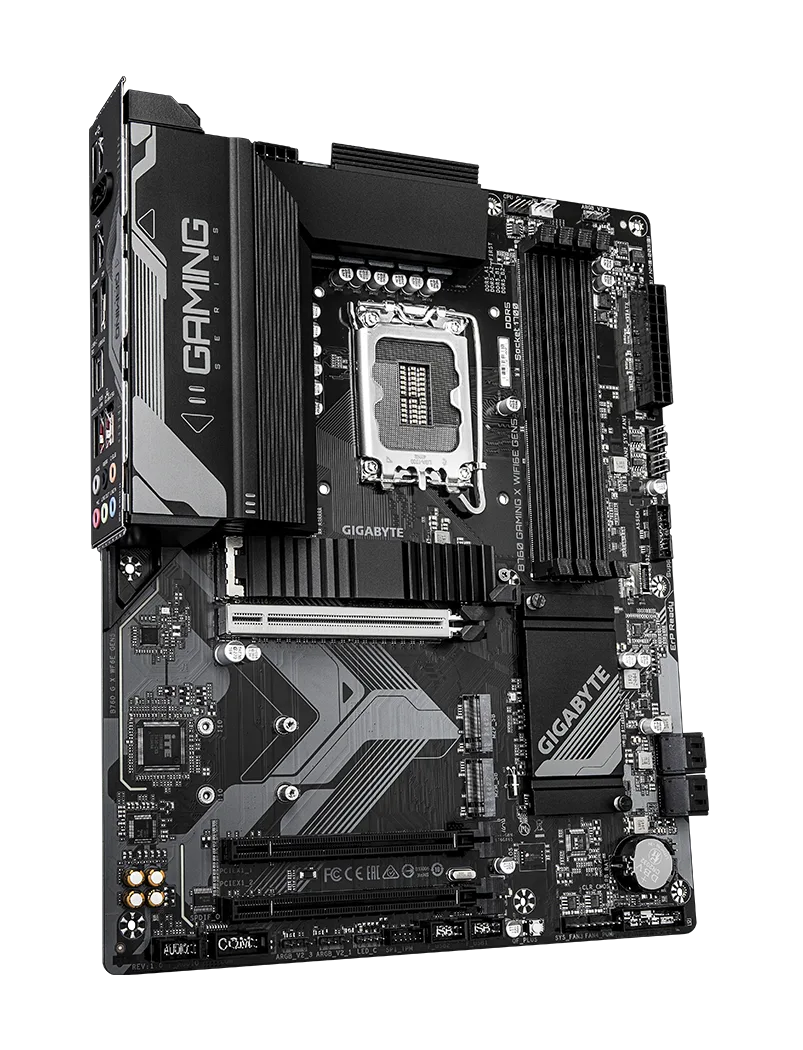

GIGABYTE B760 GAMING X WIFI6E GEN5 Motherboard

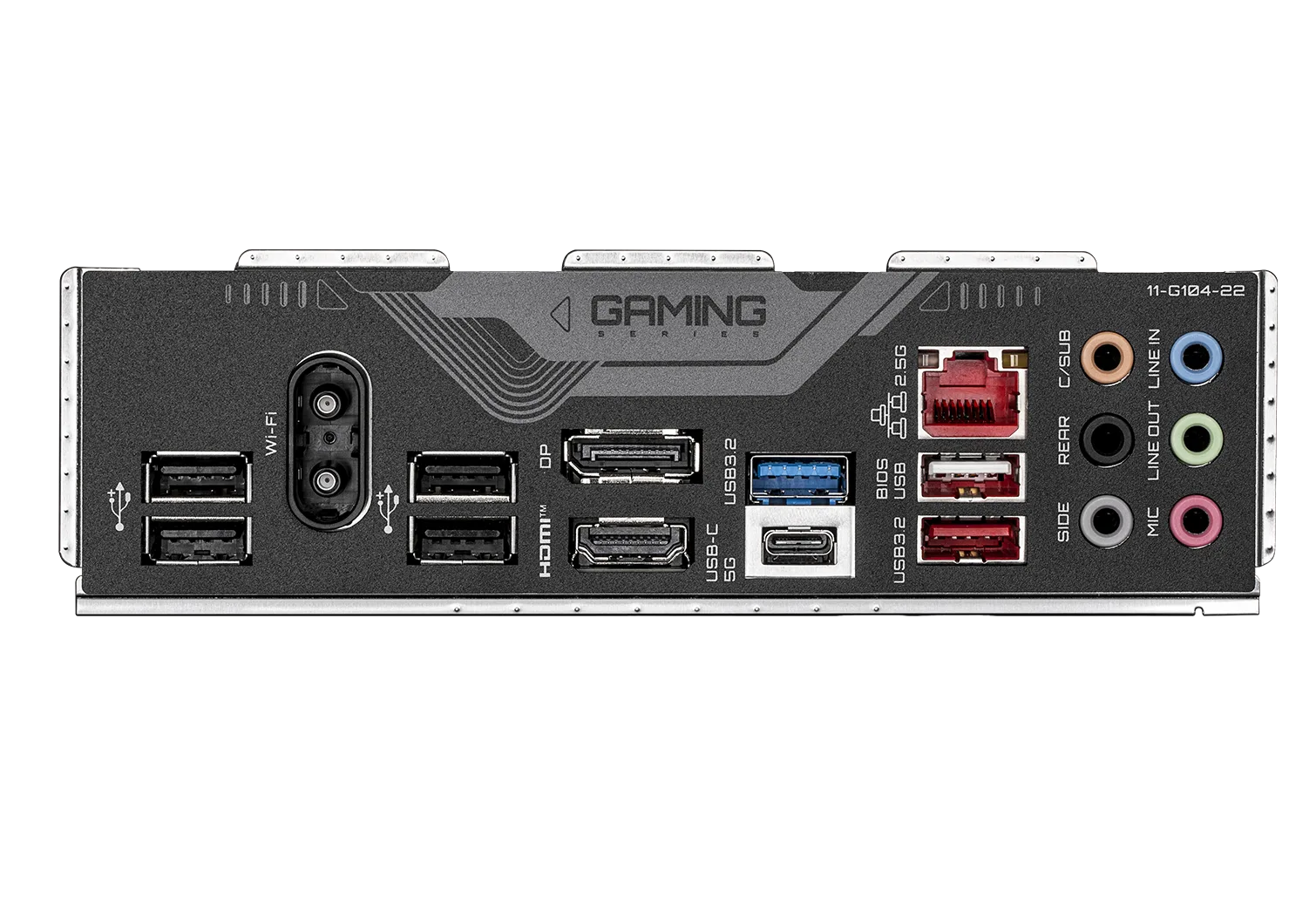

The GIGABYTE B760 GAMING X WIFI6E GEN5 is a full-size ATX gaming motherboard designed for Intel LGA1700 desktop processors. It supports Intel 14th, 13th and 12th Generation Core processors, along with compatible Pentium Gold and Celeron processors. The motherboard features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. It supports Intel XMP memory profiles for improved memory performance. For graphics, the B760 GAMING X WIFI6E GEN5 features a reinforced PCI Express x16 slot with PCIe 5.0 support. Storage connectivity includes two M.2 PCIe 4.0 x4/x2 connectors and four SATA 6Gb/s ports, providing flexible options for NVMe SSDs and SATA storage. Networking is one of the key advantages of this model. It features a Realtek 2.5GbE LAN controller together with an Intel Wi-Fi 6E AX210 wireless module supporting 2.4GHz, 5GHz and 6GHz bands. Bluetooth 5.3 is also included for wireless peripherals and accessories. For display connectivity, the motherboard provides HDMI 2.1 and DisplayPort 1.2 outputs. It also includes Realtek High Definition Audio with S/PDIF output, USB connectivity, Smart Fan 6 and Q-Flash Plus. The B760 GAMING X WIFI6E GEN5 combines PCIe 5.0, DDR5 memory, high-speed wired networking and Wi-Fi 6E in a gaming-focused ATX platform, making it suitable for gaming PCs and high-performance desktop builds.
