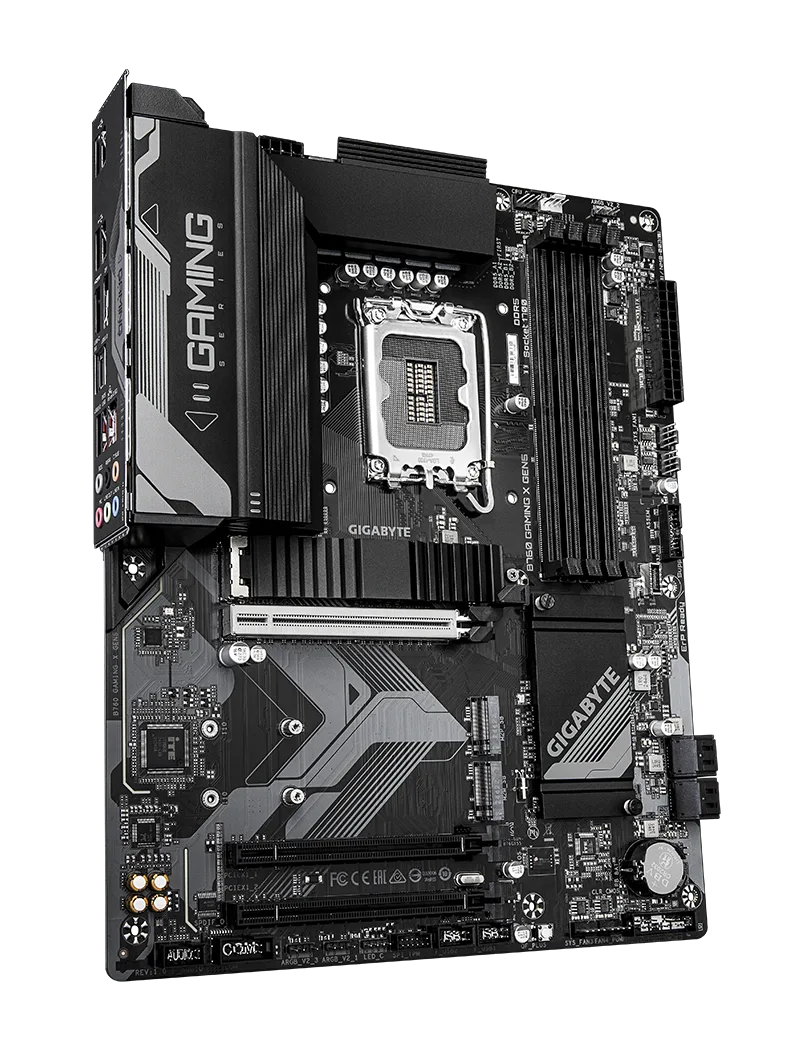

GIGABYTE B760 GAMING X GEN5 Motherboard

The GIGABYTE B760 GAMING X GEN5 is a full-size ATX gaming motherboard designed for Intel LGA1700 desktop processors. It supports Intel 14th, 13th and 12th Generation Core processors, as well as compatible Pentium Gold and Celeron processors. The motherboard is built around the Intel B760 Express chipset. It features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. The board supports Intel XMP memory modules, providing users with the flexibility to use high-performance DDR5 memory. For graphics, the B760 GAMING X GEN5 provides a reinforced PCI Express x16 slot with PCIe 5.0 support, offering high bandwidth for current and future graphics cards. Storage connectivity includes two M.2 PCIe 4.0 x4/x2 connectors and four SATA 6Gb/s ports, allowing users to combine fast NVMe SSDs with conventional SATA storage. Networking is handled by a Realtek 2.5GbE LAN controller. Unlike the B760 GAMING X WIFI6E GEN5, the standard B760 GAMING X GEN5 does not include integrated Wi-Fi or Bluetooth, making it an appropriate choice for users who prefer wired networking or plan to add a separate wireless adapter. The motherboard also includes HDMI 2.1 and DisplayPort 1.2 outputs, Realtek High Definition Audio with S/PDIF output, USB connectivity, Smart Fan 6 and Q-Flash Plus. Its gaming-focused power and thermal design makes it suitable for gaming desktops and high-performance PC builds.
