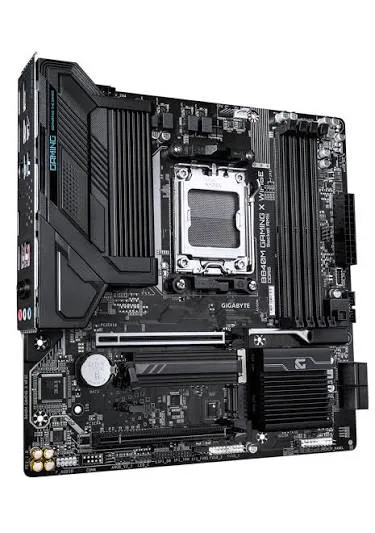

GIGABYTE B840 GAMING X WIFI6E Motherboard

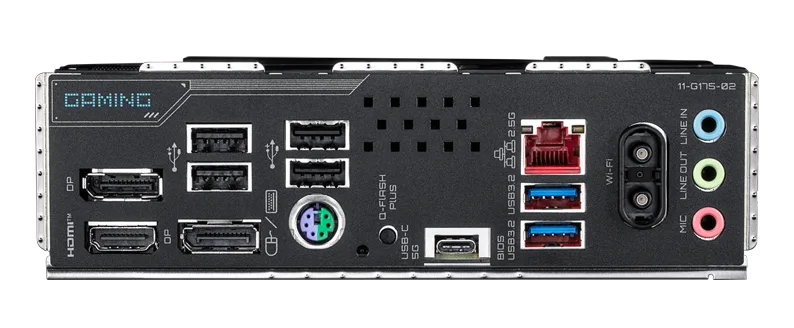

The GIGABYTE B840 GAMING X WIFI6E is a full-size ATX gaming motherboard designed for AMD Ryzen processors using the AM5 platform. Built around the AMD B840 chipset, it supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors. The motherboard features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. It supports high-speed DDR5 memory up to 8200 MT/s through overclocking and supports AMD EXPO and Intel XMP memory profiles. For graphics and expansion, the B840 GAMING X WIFI6E provides a PCIe 4.0 x16 slot, plus additional PCIe 3.0 expansion slots. Storage connectivity includes three M.2 slots and four SATA 6Gb/s connectors, giving users plenty of options for NVMe SSDs and SATA storage. Networking is provided by a Realtek 2.5GbE LAN controller and integrated Realtek Wi-Fi 6E, supporting 2.4GHz, 5GHz and 6GHz wireless bands. Bluetooth 5.3 is also included for compatible wireless peripherals. The motherboard includes HDMI 2.1 and DisplayPort 1.4 outputs, Realtek High Definition Audio, multiple USB ports and GIGABYTE features such as Smart Backup, Q-Flash Plus and GIGABYTE Control Center. Its 12+2+2 Twin Digital VRM design and 2X copper PCB provide a solid foundation for gaming and high-performance desktop systems.
