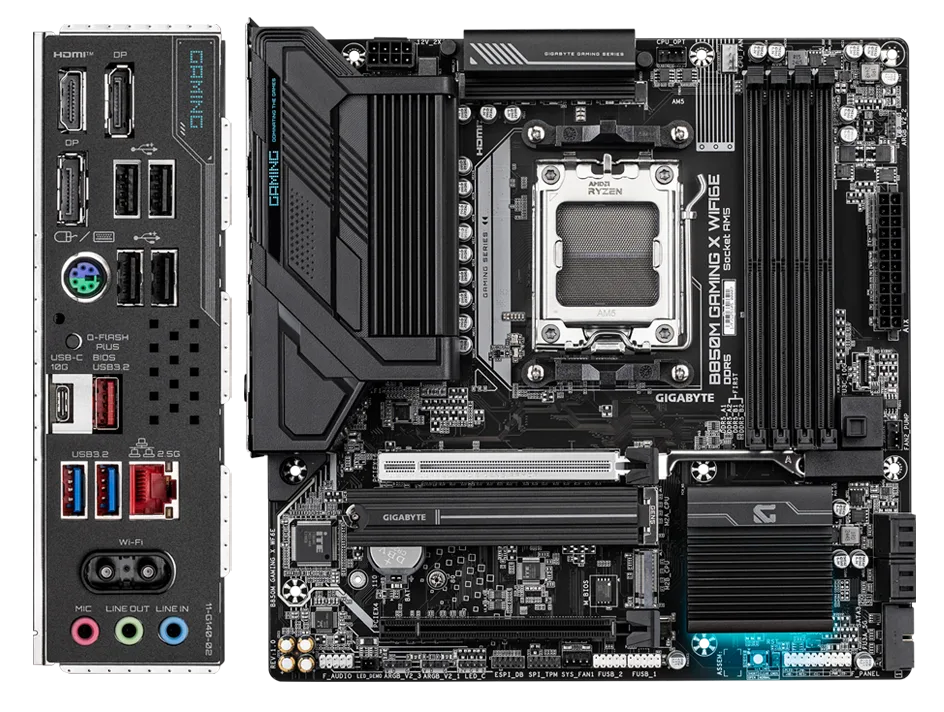

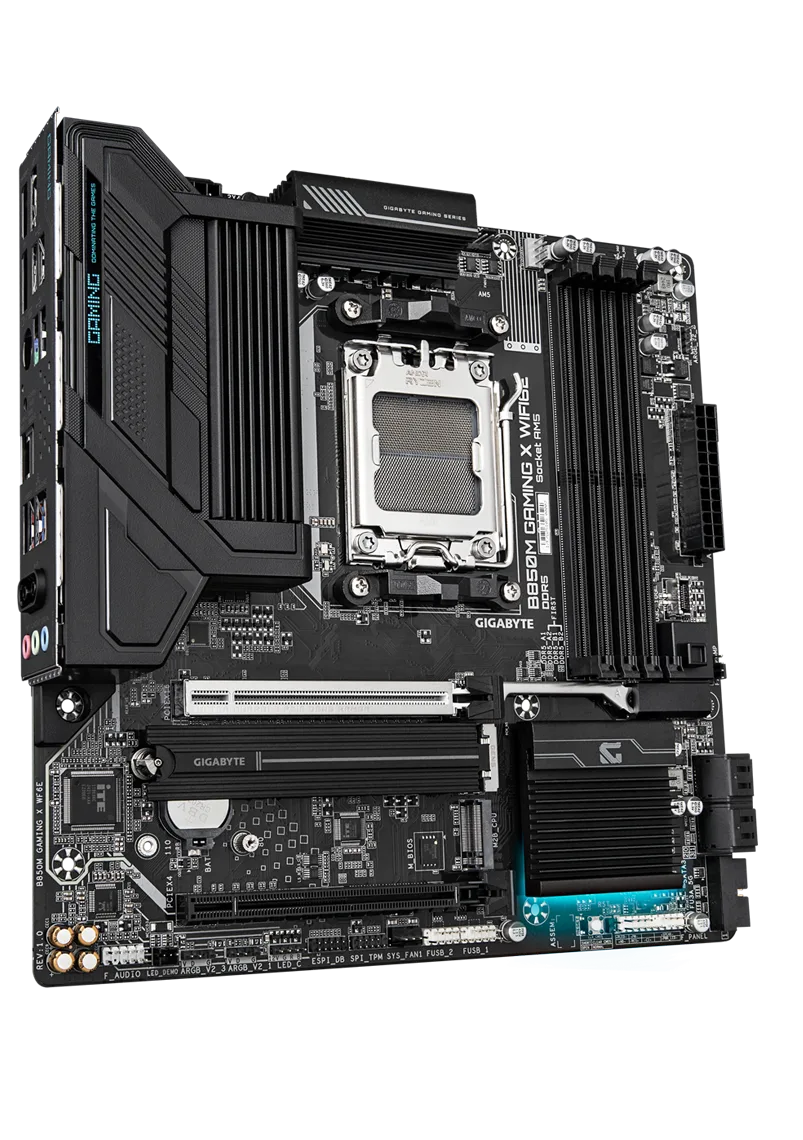

GIGABYTE B850M GAMING X WIFI6E Motherboard

The GIGABYTE B850M GAMING X WIFI6E is a modern Micro-ATX gaming motherboard built for AMD's AM5 platform. It supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series processors and is based on the AMD B850 chipset. The motherboard features four DDR5 DIMM slots supporting up to 256GB of system memory in dual-channel configuration. It supports high-speed DDR5 memory up to 8200 MT/s through overclocking and supports AMD EXPO and Intel XMP memory profiles. For graphics and expansion, the board provides a full-length PCIe x16 slot, with PCIe 5.0 support for Ryzen 9000 and 7000 Series processors. It also includes an additional PCIe x16 slot operating at PCIe 3.0 x4. Storage connectivity includes two M.2 slots: one PCIe 5.0 x4/x2 slot and one PCIe 4.0 x4/x2 slot, along with four SATA 6Gb/s connectors. NVMe RAID 0, RAID 1, RAID 5 and RAID 10 are supported. For networking, the B850M GAMING X WIFI6E includes Realtek 2.5GbE LAN and Realtek Wi-Fi 6E, supporting the 2.4GHz, 5GHz and 6GHz bands. Bluetooth 5.3 is also included. The motherboard provides HDMI 2.1 and two DisplayPort 1.4 outputs, supporting up to three displays depending on the processor. GIGABYTE also includes features such as Smart Fan 6, Q-Flash Plus, EZ-Latch Plus, M.2 Thermal Guard and GIGABYTE Control Center.
